Shanghai Shiyi Industrial Co., Ltd.
Email sales@shshiyisy.com TEL 86-138-1642-2010
Home > Products > Swimming Pool Shipping Container >
20GP Step By Step Window Pump Swimming Pool Shipping Container
  • 20GP Step By Step Window Pump Swimming Pool Shipping Container
  • 20GP Step By Step Window Pump Swimming Pool Shipping Container
  • 20GP Step By Step Window Pump Swimming Pool Shipping Container

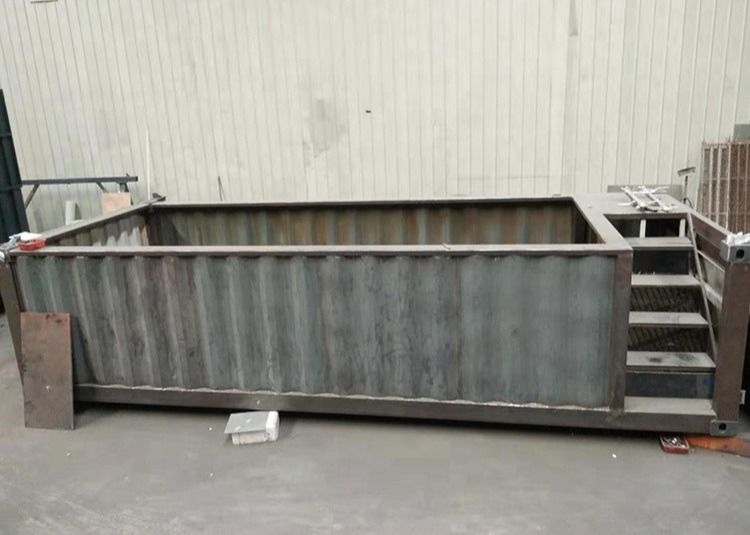

20GP Step By Step Window Pump Swimming Pool Shipping Container

Place of Origin Shanghai, China
Brand Name SHIYI
Model Number S-05-06
Product Details
Product Name:
Swimming Pool Shipping Container
Warranty:
1 Year
After-sale Service:
Online Technical Support
Project Solution Capability:
Graphic Design, 3D Model Design, Total Solution For Projects
Use:
Swimming、outdoor
Product Type:
Steel Structure
Material:
Steel Shipping Container
Voltage Standard:
Customize By Local Voltage Standard
High Light:

ODM Swimming Pool Shipping Container

,

20hc hollow glass storage container pool

,

OEM Swimming Pool Shipping Container

Payment & Shipping Terms
Minimum Order Quantity
1 - 3 Sets
Price
negotiable
Packaging Details
Container sealing, and shipping as standard container for transport.
Delivery Time
8-10 work days
Supply Ability
10 Set/Sets per Month
Product Description

Product Name : New 20GP Container Swimming Pool For Sale And Contenedor Piscina

The swimming pool shipping container can withstand 4800 gallons of water pressure. One side of the container is equipped with a layer of transparent windows, which can interact with people outside at any time. You can also swim at home in hot summer without going to the swimming pool outside to experience dumplings. The most interesting thing is, do you think you can't use it in winter? A big mistake. Swimming pool shipping container is also equipped with a heating system that can be heated to a specified temperature, just like an artificial hot spring, so that you can swim in the pool in the cold winter. There is also a partition in the interior. After the partition, there is a bathtub, and you can take a bath inside. The installation of swimming pool shipping container can be used as long as the power supply, natural gas pipeline and water inlet pipeline are connected.


Specifications

Product detailsDeception
Container sizeL6058*W2438*H2591
External dimension of swimming pool

l6058 * w2438 * h1450 (height can be changed)


Internal size of swimming pool

L5800 * w2200 * h1250 (height can be changed)


Total area / service are14.77 m2 / 12.76 M2
nterior materialpolystyrene plastic board, common colors (blue, white, beige)
Exterior colorscan be customized
Swimming pool systemfilter + pump system, countercurrent trainer system, disinfection system, etc. (select according to customer requirements)
Mode of transportationpacked in a standard 20 foot container. Save transportation cost.
Material standard certificationAustralian standard, American Standard, EU standard, ISO, etc


20GP Step By Step Window Pump Swimming Pool Shipping Container 0
20GP Step By Step Window Pump Swimming Pool Shipping Container 1

Material description


 Second hand or new marine container shell is used for the exterior, and thermal insulation material is used for the interior. In order to increase the waterproof property, the base waterproof material is added. The last layer can be paved with the special adhesive film of the swimming pool or the waterproof material on the surface layer according to the guest's preference.Due to different users, transparent glass will be added to the shell of some swimming pools, which is different from ordinary insulating toughened glass. It's stronger and safer.In order to cooperate with the sea transportation, we will restore the external dimension of the container swimming pool to the standard size (20gp / 20hc), that is to add a cover on the top of the swimming pool. After receiving the goods, the customer can remove the cover and use it. We can use the swimming pool cover together.The exterior paint can be made by the guest. For some internal devices, we will configure different equipment according to different countries.


Swimming pool Optional equipment:

1. Water quality circulating filtration system:voltage 240V/power 6.5m³/H,circulating water pump + circulating sand cylinder + electric control box + quartz sand+equipment control room etc.

2. Countercurrent trainer system:
1) high voltage pump: voltage 240 v/power 3.5
2) stainless steel countercurrent trainer.


3. Disinfection system: ultraviolet sterilizing lamp

4. .Cabin internal pool production: Material PP material (polystyrene plastic board), (There are 3 common colors, white, blue, beige; these 3 colors do not have the minimum order quantity requirement); if you need to customize the color, you need to purchase 200m2 to meet the custom color requirements.

5. Skimmer

6.Water inlet nozzle
20GP Step By Step Window Pump Swimming Pool Shipping Container 2

7.Water outlet nozzle

20GP Step By Step Window Pump Swimming Pool Shipping Container 3




Packaging and transportation

20GP Step By Step Window Pump Swimming Pool Shipping Container 4
STEP 1
The factory determines the delivery time and leases the booking to the shipping company.
STEP 2
Provide export clearance documents and related expenses.
STEP 3
The factory sealed the box and shipped it to the port three days in advance.
STEP 4
The goods leave the port of shipment and are shipped to the port of destination.
STEP 5
Received the shipping company's delivery notice and proceeded with customs formalities in advance.
STEP 6
The goods orrive ot the port of destination and are picked up according tothe bill of lading.


Company profile

Established in 2013, Shanghai SHIYI is a professional container provider, offering customized products like special shipping containers, storage containers and commercial containers, etc.Our company is located in Baoshan District, Shanghai and only 3km away from shipping dock.In the past 4 years, we have provided continuous services to various companies and offered customized containers for many well-known brands such as Nike, Buick, Chevrolet, Morris Garages, etc. We are always delivering our company value of "Honesty, Innovation and Communication".As our greatest asset, our staff are all young, energetic and ambitious. These youngster embrace a range of technical knowledge and devote to exceeding customer's satisfaction.
20GP Step By Step Window Pump Swimming Pool Shipping Container 5



Why choose us

1. Factory direct sales
2. Support customized production services
3. Professional design team can provide housing design service
4. After sales service
5. With pictures or text, according to your ideas
