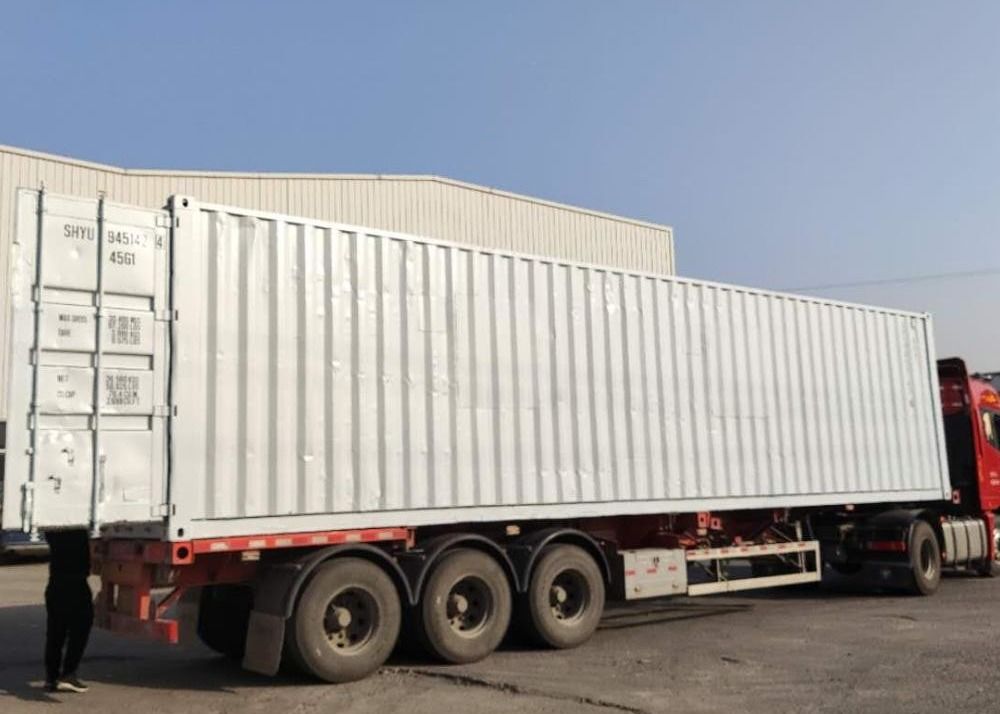

40HC designed and constructed for intermodal freight transportation of lighter weight cargo on sea (above or under deck) and on land (road or rail).
Can be use as storage,transport.
SPECIFICATIONS FOR GENERAL CARGO CONTAINERS | ||||
Ratings | 20' Standard | 40' Standard | 40' High Cube | 45' High Cube |
Maximum Gross Weight | 30,480 kg (67,200 lb.) | 32,500 kg (71,650 lb.) | 32,500 kg (71,650 lb.) | 32,500 kg (71,650 lb.) |
Tare Weight | 2,200 kg ( 4,850 lb.) | 3,700 kg ( 8,168 lb.) | 3,890 kg ( 8,587 lb.) | 4,700 kg (10,360 lb.) |
Payload | 28,280 kg (62,350 lb.) | 28,800 kg (63,482 lb.) | 28,610 kg (63,063 lb.) | 27,800 kg (61,290 lb.) |
External Dimensions | ||||
Length | 6,058 mm (19'-10½") | 12,192 mm (40'-0") | 12,192 mm (40'-0") | 13,716 mm (45'-0") |
Width | 2,438 mm (8'-0") | 2,438 mm (8'-0") | 2,438 mm (8'-0") | 2,438 mm (8'-0") |
Height | 2,591 mm (8'-6") | 2,591 mm (8'-6") | 2,896 mm (9'-6") | 2,896 mm (9'-6") |
Internal Dimensions | ||||
Length | 5,900 mm (19'-4¼") | 12,025 mm (39'-5½") | 12,025 mm (39'-5½") | 13,556 mm (44'-5 11/16") |
Width | 2,348 mm (7'-8½") | 2,348 mm (7'-8½") | 2,348 mm (7'-8½") | 2,352 mm (7'-8 9/16") |
Height | 2,385 mm (7'-9 7/8") | 2,385 mm (7'-9 7/8") | 2,690 mm (8'-9 7/8") | 2,698 mm (8'-10 1/4") |
Door Opening | ||||
Width | 2,340 mm (7'-8 1/8") | 2,340 mm (7'-8 1/8") | 2,340 mm (7'-8 1/8") | 2,340 mm (7'-8 1/8") |
Height | 2,275 mm (7'-5 5/8") | 2,275 mm (7'-5 5/8") | 2,578 mm (8'-5½") | 2,585 mm (8'-5 13/16") |
Cube | ||||
Capacity | 33.04 m³ (1,166 ft.³) | 67.34 m³ (2,377 ft.³) | 75.95 m³ (2,681 ft.³) | 86.0 m³ (3,040 ft.³) |
Test Loads | ||||
Stacking | 97,200 kg (214,290 lb.) | 97,200 kg (214,290 lb.) | 97,200 kg (214,290 lb.) | 97,200 kg (214,290 lb.) |
Transverse Racking | 15,240 kg ( 33,600 lb.) | 15,240 kg ( 33,600 lb.) | 15,240 kg ( 33,600 lb.) | 15,240 kg ( 33,600 lb.) |
Longitudinal Racking | 7,620 kg ( 16,800 lb.) | 7,620 kg ( 16,800 lb.) | 7,620 kg ( 16,800 lb.) | 7,620 kg ( 16,800 lb.) |
Floor Strength | 7,260 kg ( 16,000 lb.) | 7,260 kg ( 16,000 lb.) | 7,260 kg ( 16,000 lb.) | 7,260 kg ( 16,000 lb.) |
1.It has large volume, standard specification, and can be used anywhere.
2.It is convenient to load and unload goods. The goods can be replaced directly without moving the goods in the box.
3. Reduce damage to items. Container handling can ensure the integrity of the goods, almost completely eliminate the loss of goods, greatly reduce damage and compensation.
4. Save packaging materials. The packaging materials and simple packaging in bulk transportation are often used at one time, while containers can be used many times, which can reduce the cost of packaging and unpacking, and reduce the freight.
5 large conveying capacity, can be reused for a long time. If the bulk cargo is transported, it can be packed in advance to facilitate mechanical loading and unloading, greatly reducing the berthing time of ships in the port and the storage time of goods in the warehouse, speeding up the speed of cargo transportation and reducing the transportation cost.
1. All welded structure, good water tightness, air tightness, high rigidity and strength, not easy to deform;
2. Strong and durable, in case of collision, friction is not easy to damage, even if damaged, also easy to repair;
3. Because most of the components of the box are welded steel structure, any part of the box is easy to repair if it is damaged;
4. The cost of container is low.
Established in 2013, Shanghai SHIYI is a professional container provider, offering customized products like special shipping containers, storage containers and commercial containers, etc.Our company is located in Baoshan District, Shanghai and only 3km away from shipping dock.In the past 4 years, we have provided continuous services to various companies and offered customized containers for many well-known brands such as Nike, Buick, Chevrolet, Morris Garages, etc. We are always delivering our company value of "Honesty, Innovation and Communication".As our greatest asset, our staff are all young, energetic and ambitious. These youngster embrace a range of technical knowledge and devote to exceeding customer's satisfaction.
1. Q: Is Shanghai Shiyi a factory or a trading company?
A: Shanghai Shiyi is a container housing, which is located in Baoshan District, Shanghai. Shanghai Shiyi devotes itself to manufacture and renovate the container house since 2013. The workshop of Shanghai Shiyi is accessible to everyone for visiting purpose.
2. Q: How can I get a quotation of the project?
A: If you have your own drawing, we can offer you a quotation according to your design. If you don’t have any draft, our designers will assist you.
3. Q: Does the electric power system work in my country?
A: Our electric power systems are standardized in USA, AU and EU.
4. Q: How to install the containers?
A: We will sent you an installation instruction and video. If you still need help, we can provide on-site service. However, any other extra fees may applied.
5. Q: How do you guarantee the quality of the products?
A:We believe that good quality establishes sustainability. Each product manufactured from our factory has gone through comprehensive and sophisticated testing procedures to ensure 100% qualified before delivering.
6. Q: How about the shipping?
A: Transportation by sea is a defaulted method to delivery . The forwarding agent can provide a detail of shipping expenses.
The frame and wall panel of steel container are all made of steel, with full welded structure. The corrugated plate is used to increase the rigid strength of the container.
