New Technology Steel Structure 20ft Standard Dry Container
  • New Technology Steel Structure 20ft Standard Dry Container
  • New Technology Steel Structure 20ft Standard Dry Container
  • New Technology Steel Structure 20ft Standard Dry Container

New Technology Steel Structure 20ft Standard Dry Container

Place of Origin Shanghai, China
Model Number S-09-03
Product Details
Product Name:
20ft Dry Container
Use:
Transportation, Storage
Product Type:
Q235B Steel Structure
Material:
Steel Shipping Container
MOQ:
1
Port:
Shanghai Port
Size:
20GP
Capacity:
33.04 Cbm
High Light:

Q235B 20ft Standard Dry Container

,

20ft loading shipping container

,

Q235B Steel Standard Dry Container

Payment & Shipping Terms
Minimum Order Quantity
1 - 4 Sets
Price
negotiable
Packaging Details
Container sealing, and shipping as standard container for transport.
Supply Ability
100 Set/Sets per Month
Product Description

New technology for batch sale of 20ft standard dry containers

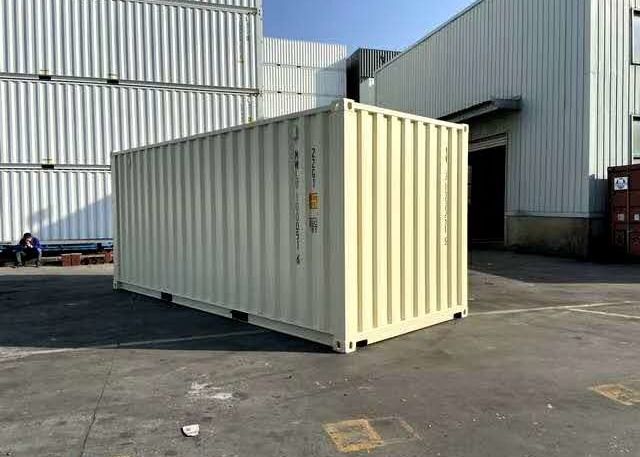

20ft Dry Container is designed and constructed for intermodal freight transportation of non-perishable cargo on sea (above or under deck) and on land (road or rail) throughout the world.





SPECIFICATIONS FOR GENERAL CARGO CONTAINERS

Ratings 20' Standard 40' Standard 40' High Cube 45' High Cube
Maximum Gross Weight 30,480 kg (67,200 lb.) 32,500 kg (71,650 lb.) 32,500 kg (71,650 lb.) 32,500 kg (71,650 lb.)
Tare Weight 2,200 kg ( 4,850 lb.) 3,700 kg ( 8,168 lb.) 3,890 kg ( 8,587 lb.) 4,700 kg (10,360 lb.)
Payload 28,280 kg (62,350 lb.) 28,800 kg (63,482 lb.) 28,610 kg (63,063 lb.) 27,800 kg (61,290 lb.)

External Dimensions
Length 6,058 mm (19'-10½") 12,192 mm (40'-0") 12,192 mm (40'-0") 13,716 mm (45'-0")
Width 2,438 mm (8'-0") 2,438 mm (8'-0") 2,438 mm (8'-0") 2,438 mm (8'-0")
Height 2,591 mm (8'-6") 2,591 mm (8'-6") 2,896 mm (9'-6") 2,896 mm (9'-6")

Internal Dimensions
Length 5,900 mm (19'-4¼") 12,025 mm (39'-5½") 12,025 mm (39'-5½") 13,556 mm (44'-5 11/16")
Width 2,348 mm (7'-8½") 2,348 mm (7'-8½") 2,348 mm (7'-8½") 2,352 mm (7'-8 9/16")
Height 2,385 mm (7'-9 7/8") 2,385 mm (7'-9 7/8") 2,690 mm (8'-9 7/8") 2,698 mm (8'-10 1/4")

Door Opening
Width 2,340 mm (7'-8 1/8") 2,340 mm (7'-8 1/8") 2,340 mm (7'-8 1/8") 2,340 mm (7'-8 1/8")
Height 2,275 mm (7'-5 5/8") 2,275 mm (7'-5 5/8") 2,578 mm (8'-5½") 2,585 mm (8'-5 13/16")

Cube
Capacity 33.04 m³ (1,166 ft.³) 67.34 m³ (2,377 ft.³) 75.95 m³ (2,681 ft.³) 86.0 m³ (3,040 ft.³)

Test Loads
Stacking 97,200 kg (214,290 lb.) 97,200 kg (214,290 lb.) 97,200 kg (214,290 lb.) 97,200 kg (214,290 lb.)
Transverse Racking 15,240 kg ( 33,600 lb.) 15,240 kg ( 33,600 lb.) 15,240 kg ( 33,600 lb.) 15,240 kg ( 33,600 lb.)
Longitudinal Racking 7,620 kg ( 16,800 lb.) 7,620 kg ( 16,800 lb.) 7,620 kg ( 16,800 lb.) 7,620 kg ( 16,800 lb.)
Floor Strength 7,260 kg ( 16,000 lb.) 7,260 kg ( 16,000 lb.) 7,260 kg ( 16,000 lb.) 7,260 kg ( 16,000 lb.)



Company profile



Established in 2013, Shanghai SHIYI is a professional container provider, offering customized products like special shipping containers, storage containers and commercial containers, etc.Our company is located in Baoshan District, Shanghai and only 3km away from shipping dock.In the past 4 years, we have provided continuous services to various companies and offered customized containers for many well-known brands such as Nike, Buick, Chevrolet, Morris Garages, etc. We are always delivering our company value of "Honesty, Innovation and Communication".As our greatest asset, our staff are all young, energetic and ambitious. These youngster embrace a range of technical knowledge and devote to exceeding customer's satisfaction.

New Technology Steel Structure 20ft Standard Dry Container 0



Packaging and transportation





STEP 1 The factory determines the delivery time and leases the booking to the shipping company.

STEP 2 Provide export clearance documents and related expenses.

STEP 3 The factory sealed the box and shipped it to the port three days in advance.

STEP 4 The goods leave the port of shipment and are shipped to the port of destination.

STEP 5 Received the shipping company's delivery notice and proceeded with customs formalities in advance.

STEP 6 The goods orrive ot the port of destination and are picked up according tothe bill of lading.
