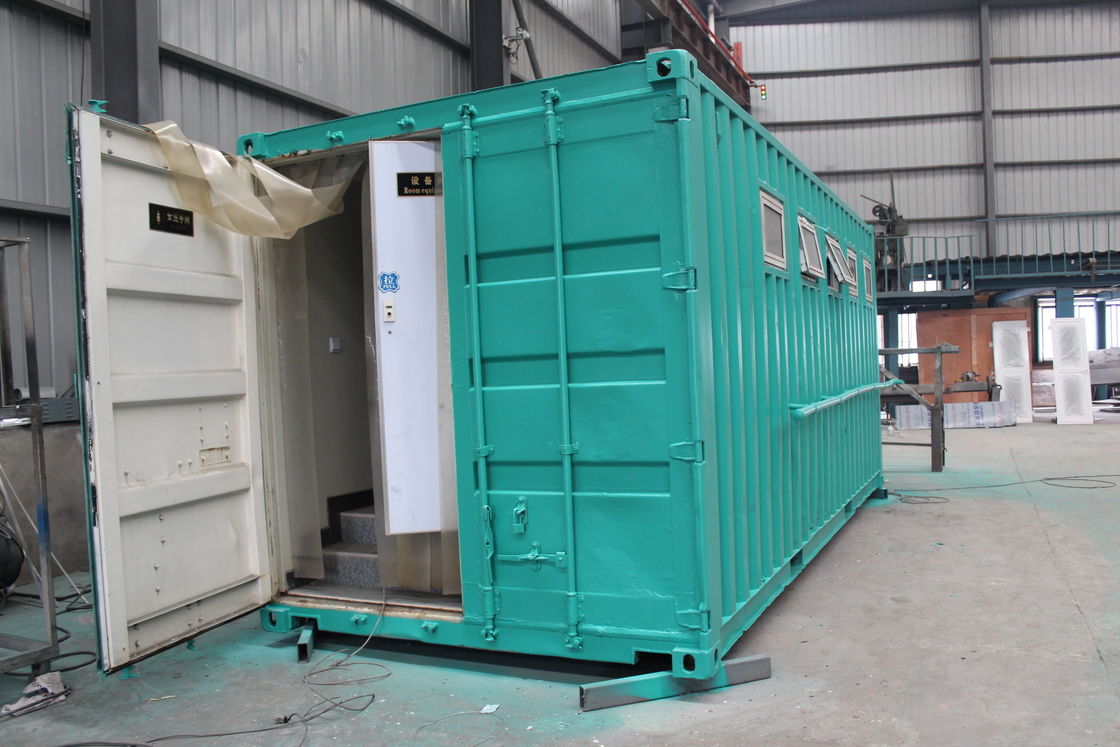

Toilet Shipping Container
>
|
| Place of Origin | Shanghai, China |
| Brand Name | SHIYI |
| Model Number | S-14-09 |
The design concept of container mobile toilet is combined with environmental protection mobile toilet, which not only improves the environment and way of using the toilet, but also increases the mobility and convenience of the toilet, making the use of the toilet more simple and humanized.
| Name | Description | Material/Type | Remarks |
|
Standard Dimensions (External &Internal Size) |
L*W*H: 20’(6058/5756mm)*(2438/2236mm)*(2591/2406mm) |
||
| Frame |
Beam:3.0mm Welded steel profile+8 Cortainner Castings; 6.0mm steel profile +4 Corner Post; 4.0mm steel profile |
steel | |
| Roof | 0.5mm Galvanized steel sheet +80mm EPS/PU insulation + 40mm EPS/PU ceiling panel | ||
| Floor | PVC;Laminate flooring;Sold wood floor | ||
| Painting | 40microns epoxy zinc primer+50microns coating | ||
| Wall Panel | 0.5mm corrugation paiting steel+60mm EPS/Mineral Wool/PU insulation+0.4Corrugation galvanized painting steel |
1.EPS 2.PU 3.Rockwool 4.Mineral Wool |
width:1150/1120mm thickness:60,80 or 100mm |
| Door |
1.Plastic Steel Door 2.Aluminum Alloy Door 3.PVC Door 4.Fireproof Door |
Ordinary Size:900*2030mm Customizabie |
|
| Window |
1.Sliding Window 2.Tilt & Turn Window |
1.PVC 2.Aluminum Alloy 3.Plastic steel |
Ordinary Size:1030*1120mm;900*1290mm; Customizabie |
| Electrical Installation |
wires;sockets;distribution box;brealer;ducts,lamps; switch |
1.CE Standard 2.Australia Standard 3.UL Standard |
1. Factory direct sales
2. Support customized production services
3. Professional design team can provide housing design service
4. After sales service
5. With pictures or text, according to your ideas
