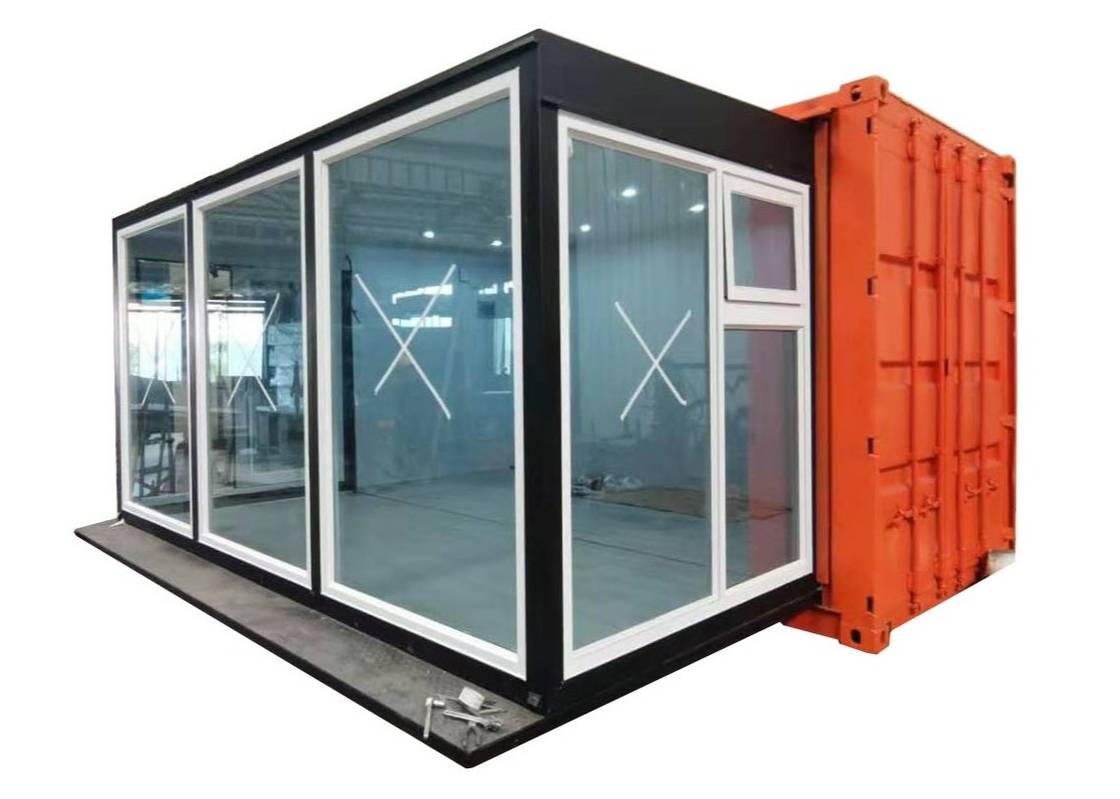

Modified Shipping Container
>
|
|
| Place of Origin | Shanghai, China |
| Brand Name | SHIYI |
| Model Number | S-18-02 |
What is a container house? We will think that this kind of habitual thinking generally belongs to the movable plank house where workers live at work. It seems that there is nothing worth noting. But in fact, more and more people are willing to build container houses in their favorite places. This kind of house can not only meet everyone's arbitrary change of residence, but also be simple and arbitrary.
| 20HC | Dimensions | MM | FT |
| Externel | Length | 6058 | 20 |
| Width | 2438 | 8 | |
| Height | 2896 | 9.5 | |
| Open Internal | Lenght | 5800 | 19 |
| Width | 4400 | 14.4 | |
| Height | 2600 | 8.5 | |
| Expansion Part | Lenght | 5800 | 19 |
| Width | 2200 | 7.2 | |
| Height | 2450 | 8..03 | |
| SQ.M | |||
| Total Area | 20 | ||
| Use Area | 15 | ||
| T | LBS | ||
| Maximum Payload | 22 | 48016 | |
| Net Weight | 4.6 | 11041 | |
1. Basic materials: new / old Marine Containers
2. Thermal insulation materials: rock wool, PS extruded board, color steel sandwich panel
3. Wall panel and top materials: UV board, aluminum plastic board, bamboo wood fiber board, metal carving board
4. Auxiliary materials: wood board, cement board, gypsum board, OSB board, calcium carbonate board, PVC floor, wood plastic panel, perforated mesh board
5. Electrical materials: cable, conduit, distribution box, switch, socket, aviation socket, downlight, circuit layout
6. Door and window materials: aluminum alloy window hollow toughened glass, aluminum alloy door laminated toughened glass
7. Customized materials: overall bathroom, external painting, bedroom, reception room
Open mode (optional)
Manual opening: manual rocker, cost-effective.
Electric opening: electric slide + manual rocker, easy to operate.
| Product details | Describe | MOQ | |||
| External dimensions | L6058*W2438*H2896 | 1 units | |||
| Internal dimensions | L5850*W2250*H2600 | ||||
| Size of expansion part | L5800*W2180*H2450 | ||||
| Total area / usable area | 30m²/25.52m² | ||||
| Exterior color | Color customization | ||||
| Opening mode | Electric opening (Electric remote control, with manual opening device) | ||||
| Internal framework support | Iron keel | ||||
| Insulation material | Rock wool sandwich panel (50 mm) / XPS(extruded polystyrene) (200 mm) / color steel sandwich panel (50 mm) | Optional | |||
| Base plate | OSB board / plywood | ||||
| Interior wall material | Bamboo and wood fiberboard / UV board / Aluminum Composite Panels / metal carved board | ||||
| Floor | PVC / wood plastic panel | ||||
| Door/window | Double sliding hollow toughened glass door / toughened bulletproof (Blinds can be installed) | ||||
| Voltage standard | Customize according to customer's local voltage standards | ||||
| Furniture (optional) | Bed (ordinary bed, folding bed), table, stool, air conditioner, refrigerator, solar energy, etc. | ||||
| Bathroom | prefab bathroom-Customizable | ||||
| kitchen | Customizable | ||||
| Standard certification | American Standard, Australian standard, European standard, ISO certification, etc. | ||||
Established in 2013, Shanghai SHIYI is a professional container provider, offering customized products like special shipping containers, storage containers and commercial containers, etc.Our company is located in Baoshan District, Shanghai and only 3km away from shipping dock.In the past 4 years, we have provided continuous services to various companies and offered customized containers for many well-known brands such as Nike, Buick, Chevrolet, Morris Garages, etc. We are always delivering our company value of "Honesty, Innovation and Communication".As our greatest asset, our staff are all young, energetic and ambitious. These youngster embrace a range of technical knowledge and devote to exceeding customer's satisfaction.
|
|
|
||
1. Q: Is Shanghai Shiyi a factory or a trading company?
A: Shanghai Shiyi is a container housing, which is located in Baoshan District, Shanghai. Shanghai Shiyi devotes itself to manufacture and renovate the container house since 2013. The workshop of Shanghai Shiyi is accessible to everyone for visiting purpose.
2. Q: How can I get a quotation of the project?
A: If you have your own drawing, we can offer you a quotation according to your design. If you don’t have any draft, our designers will assist you.
3. Q: Does the electric power system work in my country?
A: Our electric power systems are standardized in USA, AU and EU.
4. Q: How to install the containers?
A: We will sent you an installation instruction and video. If you still need help, we can provide on-site service. However, any other extra fees may applied.
