Sub Cabin Extended Prefabricated Container House 20Hc Pod Out Box
  • Sub Cabin Extended Prefabricated Container House 20Hc Pod Out Box
  • Sub Cabin Extended Prefabricated Container House 20Hc Pod Out Box
  • Sub Cabin Extended Prefabricated Container House 20Hc Pod Out Box

Sub Cabin Extended Prefabricated Container House 20Hc Pod Out Box

Place of Origin Shanghai, China
Brand Name SHIYI
Model Number S-18-06
Product Details
Product Name:
Pod Out Container House
Use:
Hotel, House, Room
Material:
Steel Shipping Container
Wall:
Thermal Insulation Material
Window:
Hollow Tempered Glass
Production Cycle:
35 Days For 1-4 Units
MOQ:
2
Application:
Room/House/Hotel
Color:
Customization
High Light:

Cabin Extended Prefabricated Container House

,

Prefabricated Container House 20Hc

,

22T Payload Prefabricated Container House

Payment & Shipping Terms
Minimum Order Quantity
1 Set/Sets
Price
negotiable
Packaging Details
Container sealing, and shipping as standard container for transport.
Delivery Time
15-20 work days
Supply Ability
3 Set/Sets per Month
Product Description

Product Name : Sub Cabin Extended Container House 20 Hc Pod Out Box



            The standard shipping container can standardize a huge object with a load of dozens of tons, and gradually realize the logistics distribution system supporting multimodal transport such as ships, ports, routes and roads all over the world. However, after people's smart brain design and modification, it has been made into a container house, It can be used to give us people residence and other applications. In recent years, container houses have become more and more common in our daily life. They are affectionately called container houses, which make containers have more and more uses. The expansion of container will greatly extend the advantages of container house.



Specifications



20HC Dimensions MM FT
Externel Length 6058 20
Width 2438 8
Height 2896 9.5
Open Internal Lenght 5800 19
Width 4400 14.4
Height 2600 8.5
Expansion Part Lenght 5800 19
Width 2200 7.2
Height 2450 8..03
  SQ.M
Total Area 20
Use Area 15

  T LBS
Maximum Payload 22 48016
Net Weight 4.6 11041





Material display



1. Basic materials: new / old Marine Containers

2. Thermal insulation materials: rock wool, PS extruded board, color steel sandwich panel

3. Wall panel and top materials: UV board, aluminum plastic board, bamboo wood fiber board, metal carving board

4. Auxiliary materials: wood board, cement board, gypsum board, OSB board, calcium carbonate board, PVC floor, wood plastic panel, perforated mesh board

5. Electrical materials: cable, conduit, distribution box, switch, socket, aviation socket, downlight, circuit layout

6. Door and window materials: aluminum alloy window hollow toughened glass, aluminum alloy door laminated toughened glass

7. Customized materials: overall bathroom, external painting, bedroom, reception room



Open mode (optional)

Manual opening: manual rocker, cost-effective.

Electric opening: electric slide + manual rocker, easy to operate.

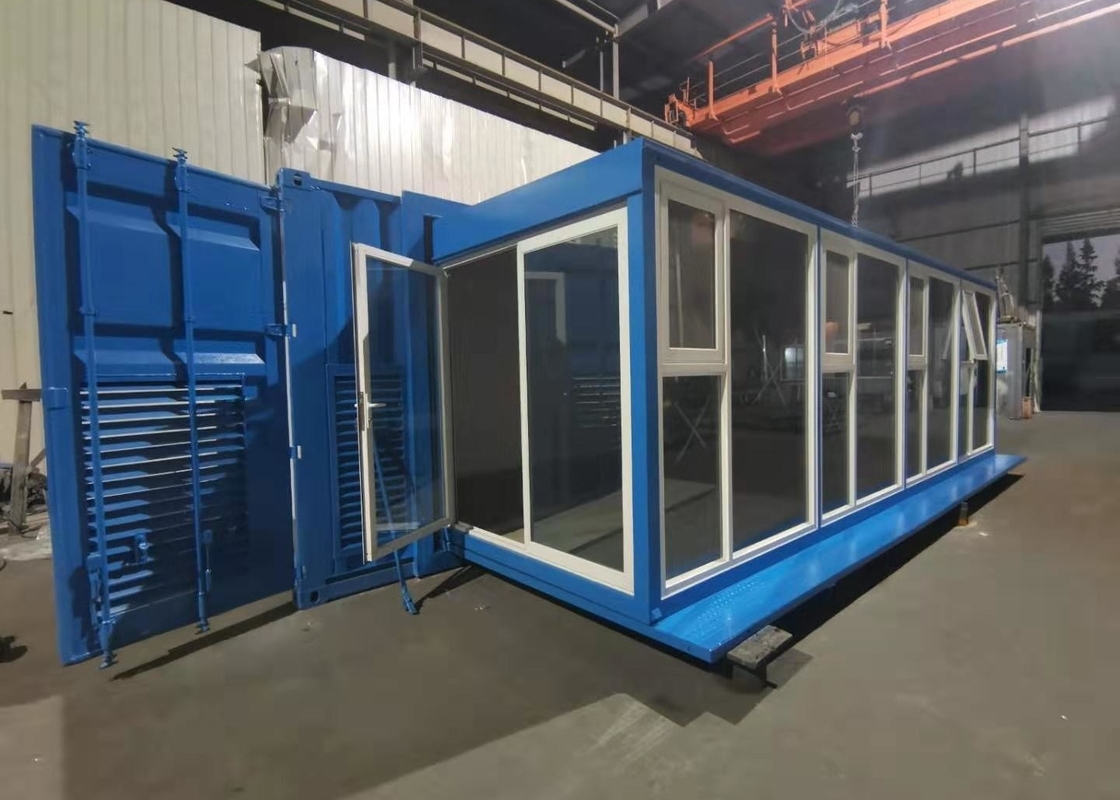

Sub Cabin Extended Prefabricated Container House 20Hc Pod Out Box 0

Sub Cabin Extended Prefabricated Container House 20Hc Pod Out Box 1

customized

Product details Describe MOQ
External dimensions L6058*W2438*H2896 1 units
Internal dimensions L5850*W2250*H2600
Size of expansion part L5800*W2180*H2450
Total area / usable area 30m²/25.52m²
Exterior color Color customization
Opening mode Electric opening (Electric remote control, with manual opening device)
Internal framework support Iron keel
Insulation material Rock wool sandwich panel (50 mm) / XPS(extruded polystyrene) (200 mm) / color steel sandwich panel (50 mm) Optional
Base plate OSB board / plywood
Interior wall material Bamboo and wood fiberboard / UV board / Aluminum Composite Panels / metal carved board
Floor  PVC / wood plastic panel
Door/window Double sliding hollow toughened glass door / toughened bulletproof (Blinds can be installed)
Voltage standard Customize according to customer's local voltage standards
Furniture (optional) Bed (ordinary bed, folding bed), table, stool, air conditioner, refrigerator, solar energy, etc.
Bathroom prefab bathroom-Customizable
kitchen Customizable
Standard certification American Standard, Australian standard, European standard, ISO certification, etc.







Packaging and transportation





STEP 1

The factory determines the delivery time and leases the booking to the shipping company.

STEP 2

Provide export clearance documents and related expenses.

STEP 3

The factory sealed the box and shipped it to the port three days in advance.

STEP 4

The goods leave the port of shipment and are shipped to the port of destination.

STEP 5

Received the shipping company's delivery notice and proceeded with customs formalities in advance.

STEP 6

The goods orrive ot the port of destination and are picked up according tothe bill of lading.






Why choose us





1. Factory direct sales

2. Support customized production services

3. Professional design team can provide housing design service

4. After sales service

5. With pictures or text, according to your ideas
