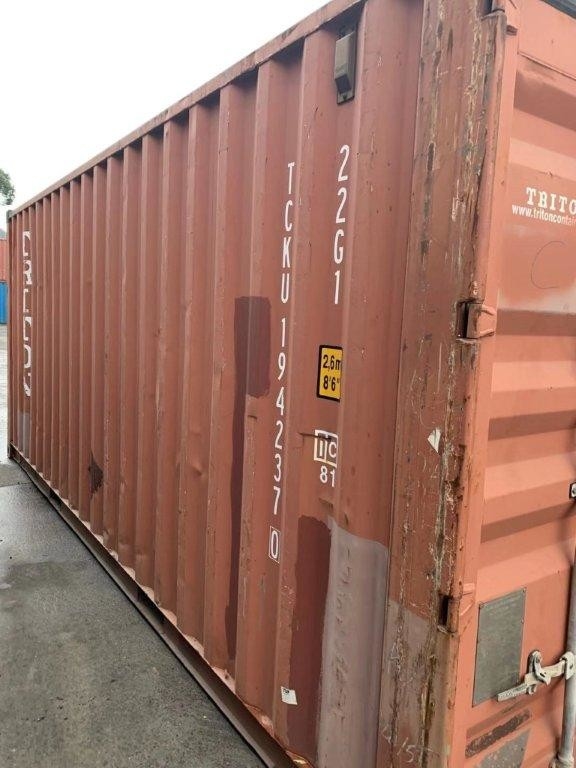

SPECIFICATIONS FOR GENERAL CARGO CONTAINERS | |
Ratings | 20' Standard |
Maximum Gross Weight | 30,480 kg (67,200 lb.) |
Tare Weight | 2,200 kg ( 4,850 lb.) |
Payload | 28,280 kg (62,350 lb.) |
External Dimensions | |
Length | 6,058 mm (19'-10½") |
Width | 2,438 mm (8'-0") |
Height | 2,591 mm (8'-6") |
Internal Dimensions | |
Length | 5,900 mm (19'-4¼") |
Width | 2,348 mm (7'-8½") |
Height | 2,385 mm (7'-9 7/8") |
Door Opening | |
Width | 2,340 mm (7'-8 1/8") |
Height | 2,275 mm (7'-5 5/8") |
Cube | |
Capacity | 33.04 m³ (1,166 ft.³) |
Test Loads | |
Stacking | 97,200 kg (214,290 lb.) |
Transverse Racking | 15,240 kg ( 33,600 lb.) |
Longitudinal Racking | 7,620 kg ( 16,800 lb.) |
Floor Strength | 7,260 kg ( 16,000 lb.) |
1.It has large volume, standard specification, and can be used anywhere.
2.It is convenient to load and unload goods. The goods can be replaced directly without moving the goods in the box.
3. Reduce damage to items. Container handling can ensure the integrity of the goods, almost completely eliminate the loss of goods, greatly reduce damage and compensation.
4. Save packaging materials. The packaging materials and simple packaging in bulk transportation are often used at one time, while containers can be used many times, which can reduce the cost of packaging and unpacking, and reduce the freight.
5 large conveying capacity, can be reused for a long time. If the bulk cargo is transported, it can be packed in advance to facilitate mechanical loading and unloading, greatly reducing the berthing time of ships in the port and the storage time of goods in the warehouse, speeding up the speed of cargo transportation and reducing the transportation cost.
Established in 2013, Shanghai SHIYI is a professional container provider, offering customized products like special shipping containers, storage containers and commercial containers, etc.Our company is located in Baoshan District, Shanghai and only 3km away from shipping dock.In the past 4 years, we have provided continuous services to various companies and offered customized containers for many well-known brands such as Buick, Chevrolet, Morris Garages, etc. We are always delivering our company value of "Honesty, Innovation and Communication".As our greatest asset, our staff are all young, energetic and ambitious. These youngster embrace a range of technical knowledge and devote to exceeding customer's satisfaction.
