Folding Mobile Prefabricated Modular Container House Shockproof Prefabricated Steel Structure

Large Image : Folding Mobile Prefabricated Modular Container House Shockproof Prefabricated Steel Structure

Product Details:

Place of Origin:	Shandong
Brand Name:	Lida
Certification:	ISO / CE

Payment & Shipping Terms:

Minimum Order Quantity:	500 sq
Payment Terms:	L/C, T/T

Contact Now Chat Now

Folding Mobile Prefabricated Modular Container House Shockproof Prefabricated Steel Structure

Description

Feature:	Soundproof/ Rust Proof/Earthquake Resistant/Waterproof/Heat Insulated	Material:	Steel
Material:	Q195/Q235/Q345	Size:	L5800mm × W5980mm × H2580mm
Weight:	Approximately 4000kg	Flooring:	Laminate Board (18mm)
Windows:	Aluminum Windows	Door:	Steel Door
Wall Material:	75mm Sandwich Panel	Item:	Prefabricated K House
Highlight:	mobile prefabricated modular container house , shockproof prefabricated steel structure , prefabricated modular container house shockproof

Low Maintenance Prefab House - Energy Saving & Shockproof Temporary Accommodation

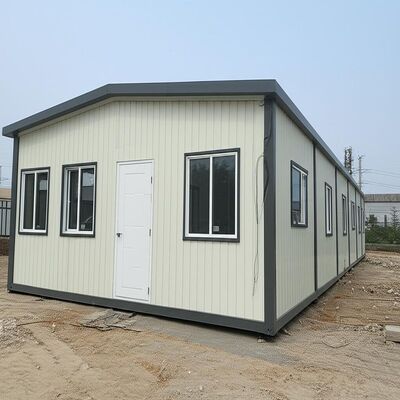

The Lida K model prefab house is constructed using light steel framing with insulated sandwich panels for walls and roof. Available insulation materials include polystyrene, polyurethane, rock wool, and fiber glass sandwich panels for optimal thermal performance.

Standard K model prefab houses feature modular 1.8m components connected by bolts, allowing for easy assembly and disassembly. These structures can be reassembled over 6 times and offer a service life exceeding 15 years.

Technical Specifications

Type	K Model Prefabricated House
House Depth	5.56m, 6.23m, 8.28m or custom sizes available
House Width	N × K × 1.8m (N = 5,6,7,...; K = 1.8m)
House Height	Single floor, double floor, or three floors
Design Load	Roof load: 0.50 KN/m² Wind load: 0.45 KN/m² Floor load: 1.5 KN/m² Snow load: 0.15 KN/m²
Service Life	10-15 years
Main Column	C section steel
Roof Truss	C section steel
Roof & Wall Purlin	C section steel
Roof Panel	EPS, fiber glass, rock wool, or PU sandwich panel
Wall Panel	EPS, fiber glass, rock wool, or PU sandwich panel
Window	PVC, aluminum alloy, or custom options
Door	Sandwich panel, wood, PVC with glass, aluminum alloy frame, security door, or custom options
Floor Plywood	18mm high-quality plywood
Floor Leather	1.5mm PVC floor covering
Electric System	Sockets, switches, lights, cables, and accessories
Plumbing System	Pipes, basin, toilet, and connection accessories
Installation Accessories	Glass glue, nails, edge covers, AC racks, general bolts, and anchor bolts
