5.56m 6.23m T Model Prefab House C Section Prefab Steel Homes

Basic Properties

Place of Origin: Shandong

Brand Name: Lida

Certification: ISO / CE

Trading Properties

Minimum Order Quantity: 500 sq

Payment Terms: L/C, T/T

6.23m t model prefab house

Specifications

Feature:	Soundproof/ Rust Proof/Earthquake Resistant/Waterproof/Heat Insulated	Material:	Steel
Material:	Q195/Q235/Q345	Size:	L5800mm × W5980mm × H2580mm
Weight:	Approximately 4000kg	Flooring:	Laminate Board (18mm)
Windows:	Aluminum Windows	Door:	Steel Door
Wall Material:	75mm Sandwich Panel	Name:	T Model Prefab House
High Light:	6.23m t model prefab house , t model prefab house c section , 5.56m prefab steel homes

Product Description

Energy Efficient Prefab House Fast Assembly Weather Resistant Residential Living Space

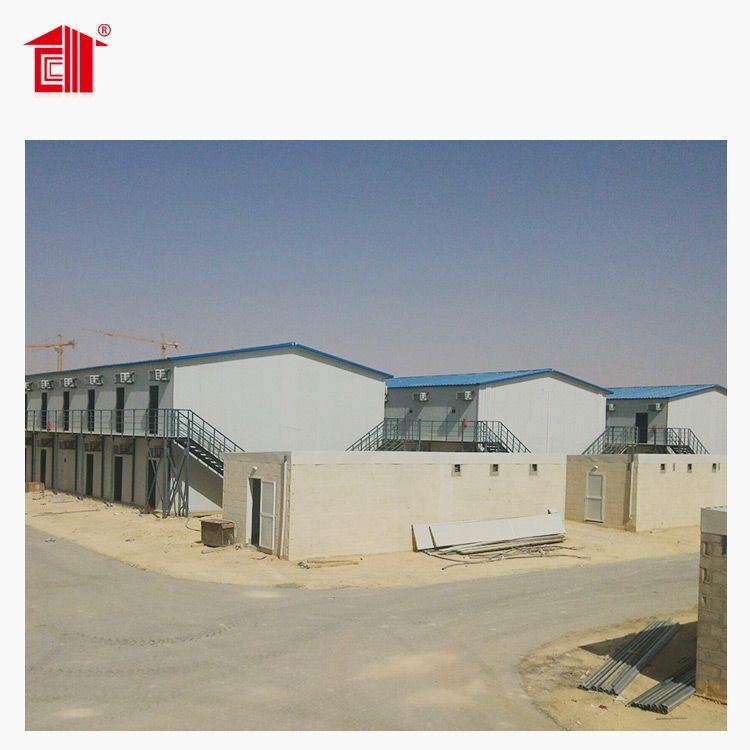

Lida prefab house (prefabricated house) is constructed using light steel framing for the structure and insulated sandwich panels for walls and roofing. The sandwich panels are available in various insulation materials including polystyrene, polyurethane, rock wool, and fiber glass.

The standard K model prefab house features modular construction with 1.8-meter sections connected by bolts. This design allows for assembly and disassembly more than 6 times, with a service life exceeding 15 years.

Technical Specifications

Type	T Model Prefabricated House
House Depth	5.56m, 6.23m, 8.28m or custom sizes available
House Width	N × K × 1.8m (where N = 5,6,7,... and K = 1.8m)
House Height	Single floor, double floor, or three floors
Design Load	Roof load: 0.50 KN/m² Wind load: 0.45 KN/m² Floor load: 1.5 KN/m² Snow load: 0.15 KN/m²
Service Life	10-15 years
Main Column	C section steel
Roof Truss	C section steel
Roof & Wall Purlin	C section steel
Roof Panel	EPS, fiber glass, rock wool, or PU sandwich panel
Wall Panel	EPS, fiber glass, rock wool, or PU sandwich panel
Window	PVC window, aluminum alloy window, or custom options
Door	Sandwich panel door, wood door, PVC door with glass, aluminum alloy frame door, security door, or custom options
Floor Plywood	18mm high-quality plywood
Floor Leather	1.5mm PVC floor leather
Electric System	Sockets, switches, lights, cables, and accessories
Plumbing System	Pipes, basin, toilet, and connection accessories
Installation Accessories	Glass glue, nails, edge cover, AC rack, general bolts, anchor bolts, and installation components
